You’ll start on hard, level ground with your parking brake engaged and the key removed. After verifying equal tire pressures and clearing debris, you’ll set the deck to mid-height and measure side-to-side clearances at identical points. But what happens when those measurements don’t match, and how do you know you’ve achieved the proper front-to-back pitch before testing your cut?
Start on Hard, Level Ground for Accurate Measurements
Park your mower on a hard, level surface—concrete or asphalt works best—and engage the parking brake immediately after removing the ignition key. You’ll eliminate variables that compromise deck balance by establishing stable positioning on level ground.
Before measuring, clear accumulated debris from the deck underside and allow the engine to cool completely. Residual heat causes metal expansion, distorting your readings. Position the wheels straight ahead and set the cutting height to mid-range for measurement consistency throughout this procedure.
Grab a straightedge or ruler and measure vertically from the ground plane to the top of the deck shell. Take readings at identical points on both sides. Record these measurements precisely and verify they’re within manufacturer tolerance specifications. Only proceed with adjustments once you’ve confirmed accurate measurements establish true deck balance.
Check Tire Pressure Before Leveling the Mower Deck
Why would you measure a deck’s level with tires that aren’t right? You can’t.
Begin by checking the rear tire pressure cold—use a reliable tire gauge to verify each tire matches the PSI stamped on its sidewall.
Unequal tire pressure throws off deck height measurements before you even start mower deck adjustment.
Even a few PSI difference tilts the deck frame, corrupting deck leveling results.
You must inflate or deflate to manufacturer specifications, then re-check both tires.
Only proceed with measuring side-to-side deck level after confirming equal, correct tire pressure.
This foundational step ensures your subsequent adjustments actually deliver a parallel cutting plane.
Skip it, and you’ll chase leveling problems created by your own oversight.
Precision demands proper inflation first.

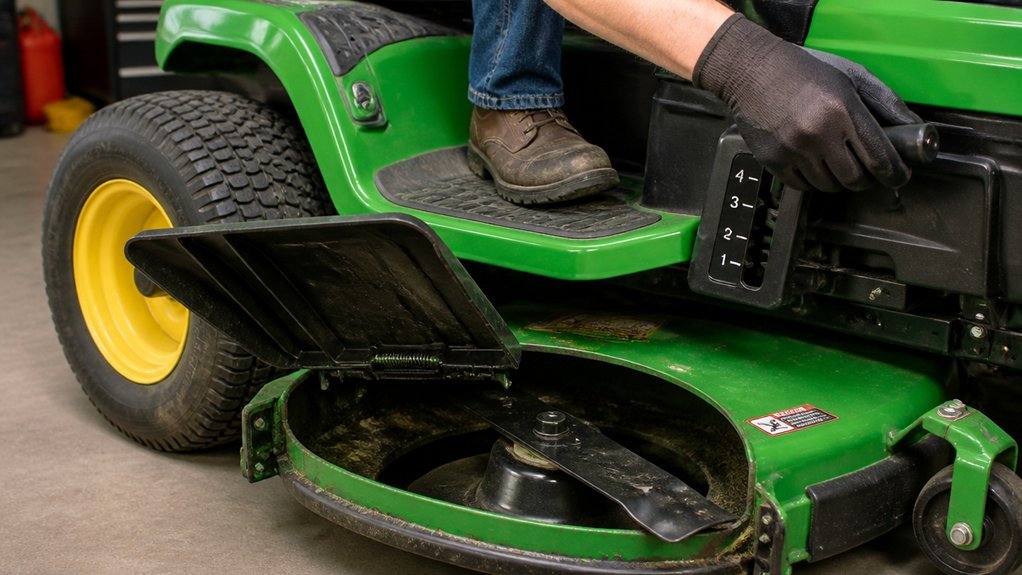

Remove the Side-Discharge Shield and Set Deck Height
Before you’ll move a single adjustment bolt, you’ve got to strip away the side-discharge shield. Removing this guard eliminates interference with deck movement and grants unobstructed access to adjustment components so you can perform leveling safely. Park your mower on a hard, level surface, engage the parking brake, and remove the ignition key to prevent accidental deck movement during this phase.
Set your deck height to the mid-range cutting position. This establishes a representative baseline so subsequent measurements reflect typical operating conditions. Verify that the side-discharge shield is completely removed and that no hardware remains protruding into the adjustment zone. Confirm the deck sits at mid-range height before proceeding. Double-check that all components near the former shield mounting points are secure to prevent snagging during leveling adjustments.

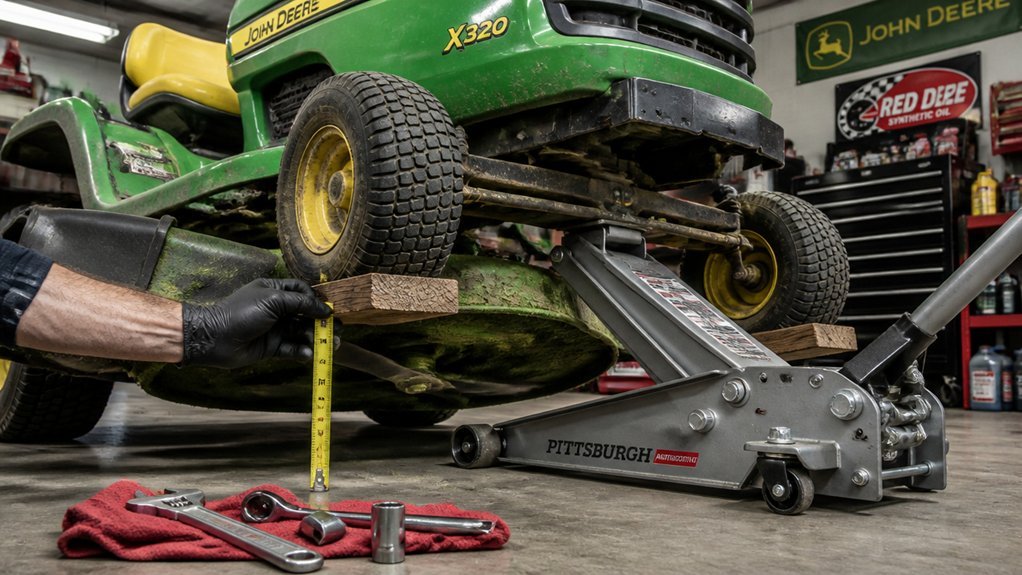

Measure Side-to-Side Mower Deck Height
Where exactly is your deck sitting? You’ll need to verify this before making any corrections. Park your mower on a hard, level surface and set the parking brake. Grab your tape measure and record the distance from the ground to the top of the deck shell on both the left and right sides. Write down each measurement and compare them directly. If they’re unequal, your deck level is off side-to-side, and you’ll need to locate the adjustment rods on each side. These rods attach at the front to the wheel lift channel and control height independently. You won’t adjust them yet—just identify their position. After any future adjustments, you’ll re-measure both sides to confirm equal heights and verify the deck is level side-to-side.
Adjust the Heim Joint to Raise or Lower Each Side
Once you’ve identified the height difference between sides, you’ll correct it by adjusting the heim joints.
Locate the heim joint on each side—the connection attaching the deck to the wheel lift channel. Loosen the front jam nut, then remove the cotter pin and nylon washer, sliding both off the pin. Rotate the heim joint clockwise or counterclockwise to raise or lower that side, modifying the adjustment angle until you’ve achieved the desired deck level. Reinsert the nylon washer and cotter pin to secure the heim joint, then re-measure both sides. Repeat rotation as needed to balance. Once you’ve confirmed deck level parity, retighten the jam nut and perform a final measurement to verify both sides match precisely.
Tighten Everything Down and Double-Check
Why risk losing your precise adjustments? Tighten the jam nut immediately after setting deck height to lock your position and prevent drift during operation. You’re securing the mechanical integrity of your entire deck leveling system, so don’t skip this step.
Reinsert the cotter pin and nylon washer, ensuring they’re fully seated—you’re creating redundant retention against vibration-induced loosening. Now begin verification: re-measure both sides to confirm side-to-side level hasn’t shifted during your fastener operations. Any rotation of the heim joints demands immediate correction.
You must also verify front-to-back pitch, confirming the front edge sits 1/8″ to 1/4″ lower than the rear using attachment points closest to 8-1/4″ specification. For model-specific confirmation, watch the demonstration video before completing your verification sequence.
Adjust Front-to-Back Deck Pitch
With your side-to-side level locked down, you’re ready to tackle the front-to-back pitch that controls how grass discharges and prevents uneven wear on your blades.
For proper deck pitch, position the front of your deck 1/8″ to 1/4″ lower than the rear at your chosen cutting height.
Begin this front-to-back adjustment by identifying deck attachment points and corresponding holes on the brackets.
Measure from ground level to these holes to select proper positioning.
At 3″ cutting height or above, use the attachment hole closest to 8-1/4″.
For lower heights, drop deck-attaching brackets one hole and relocate axle bolts to the top hole.
After completing this mower deck leveling step, remeasure front-to-back alignment.
Verify your achieved pitch by checking deck-to-ground measurements, confirming you’ve established the intended differential for optimal (or ideal) cutting performance.
Position Brackets for Your Cutting Height
Where exactly should your brackets sit? You’ll identify the correct deck attachment points by matching your chosen deck height to the specific mounting holes on your mower’s brackets, using your manual or model guide for reference. For higher cutting heights, position the brackets in holes closer to the top to achieve greater deck lift. For lower heights, shift down to lower mounting holes. If you’re lowering considerably, adjust the axle bolts to the top hole as needed. After selecting your position, measure from ground level to each attachment hole to ensure the brackets align the deck at your target height. Re-measure both sides and confirm consistency. This precision prevents uneven blade positioning and establishes your foundation before final leveling steps.
Verify Level and Test the Cut
How will you know your adjustments actually worked? You’ll take a second measurement on each side to verify the side-to-side level persists; repeat adjustments if imbalance remains. You’ll check that the front-to-back pitch holds at 1/8″ to 1/4″ lower than the rear at your target deck level. When cutting at 3″ or higher, you’ll confirm you’ve selected the hole nearest to 8-1/4″ on the brackets. At lower heights, you’ll verify you’ve lowered the deck-attaching brackets by one hole and moved axle bolts to the top hole. Recheck both the front-to-back pitch and side-to-side level after any correction. You’ll maintain precision by consulting the demonstration video for step-by-step guidance throughout verification. Test the cut on a level surface to confirm even clipping distribution across the swath.
Conclusion
You’ve leveled your mower deck by establishing equal side-to-side measurements and proper front-to-back pitch. You’ll maintain optimal cutting performance by rechecking level seasonally, after impacts, and whenever you observe uneven cut patterns. You’re ensuring clean, consistent cuts and minimizing turf damage through precise deck geometry.
